Take-it-Easel

Instructions for setting up your Take-It-Easel

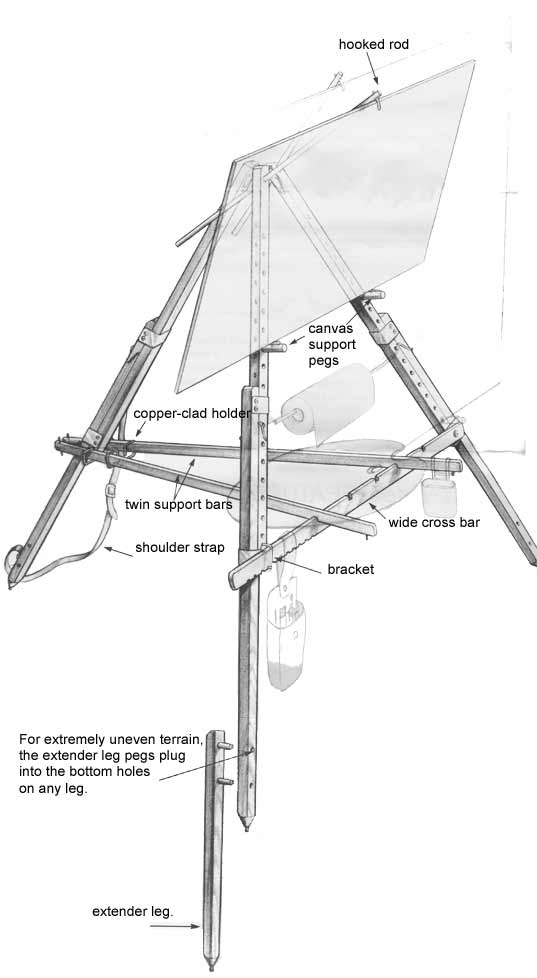

1. Unwrap the narrow strap from around the easel along
with the canvas support pegs. Remove the hooked
rod and extender leg from stored position.

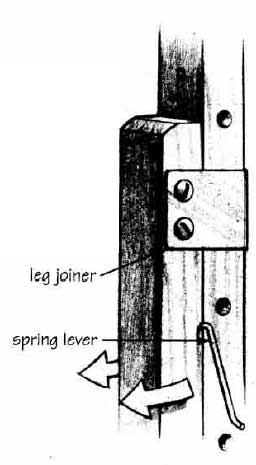

Pull the spring lever to full tension toward your palm and slide each leg out to desired height releasing the lever into its relaxed position. Be sure leg spring snaps into the hole, especially in storage, to ensure good spring tension for the life of the easel.

For printer-friendly instructions and how to set up your Take-It-Easel, click here

3. Drop down the wide cross bar from the right leg and insert it
into the bracket on the left leg.

4. Unhook twin support bars from the top of the rear leg. Let the copper-clad holder slide all the way down to the rear leg, allowing the twin support bars to spread and drop into the desired notches on the crossbar. To make the easel rigid, slide the copper clad holder forward slightly as a tensioner.

5. Place the canvas
support pegs into the
front legs at the desired
height.

6. Insert hooked rod into one of the top holes angled to reduce glare on your painting surface. Use a bungee cord to secure it in windy conditions or to hold small works, replacing the hooked rod.

			We’ve been helping artists “Take-It-Easel” for more than 12 years

			INSTRUCTIONS 2. Pull the spring lever to full tension toward your palm and slide each leg out to desired height releasing the lever into its relaxed position. Be sure leg spring snaps into the hole, especially in storage, to ensure good spring tension for the life of the easel.
